Microchip Pickit 44-pin (pic18f45k20)tarjeta De Desarrollo

Descripción

PREGUNTAR PRECIO Y DISPONIBILIDAD ANTES DE OFERTAR!!!

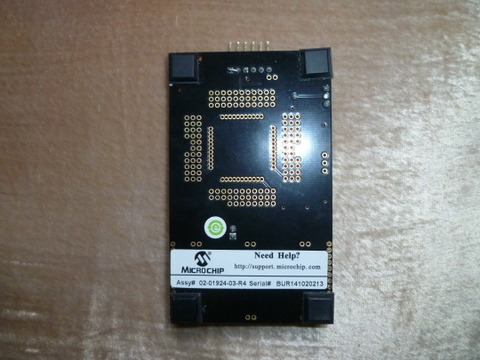

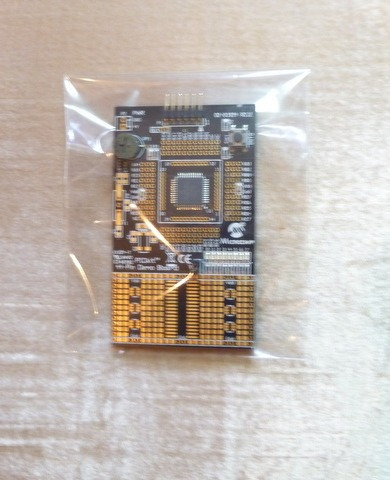

MICROCHIP PICkit 44-PIN DEMO BOARD (PIC18F45K20)
Mfr. Part No. DM164130-4 Manufacturer Microchip
PRECIO 30 Ó AL CAMBIO DEL DIA EN BOLÍVARES

CARACTERISTICAS:

Small demo board with a PIC18F45K20 device on board
A small, surface-mount prototype area
Use it with a PICkit 3 In-Circuit Debugger to program your code via a 6-pin ICSP header on the board.
Two bare PCB boards for customizing their development.

PIC18F45K20 Features

High Performance RISC CPU:
C Compiler Optimized Architecture:
Optional extended instruction set designed to optimize re-entrant code
Up to 1024 bytes Data EEPROM
Up to 64 Kbytes Linear program memory addressing
Up to 3936 bytes Linear data memory addressing
Up to 16 MIPS operation
16-bit wide instructions, 8-bit wide data path
Priority levels for interrupts
31-level, software accessible hardware stack
8 x 8 single-cycle hardware multiplier
Flexible Oscillator Structure
Operating Voltage Range: 1.8V to 3.6V
Self-Programmable under Software Control
Programmable 16-Level High/Low-Voltage Detection (HLVD) module:
Interrupt on High/Low-Voltage Detection
Programmable Brown-out Reset (BOR):
With software enable option
Extended Watchdog Timer (WDT):
Programmable period from 4 ms to 131s
Single-Supply 3V In-Circuit Serial Programming™ (ICSP™) via two pins
In-Circuit Debug (ICD) via Two Pins
Extreme Low-Power Management with nanoWatt XLP
Analog-to-Digital Converter (ADC) module
Analog Comparator module
Voltage Reference (CVREF) module
Up to 35 I/O pins plus 1 input-only pin
Capture/Compare/PWM (CCP) module
Enhanced CCP (ECCP) module
Master Synchronous Serial Port (MSSP) module
Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART) module
