Inducido Arranque Chevrolet C1500 C2500 C3500 305 350 454

Descripción

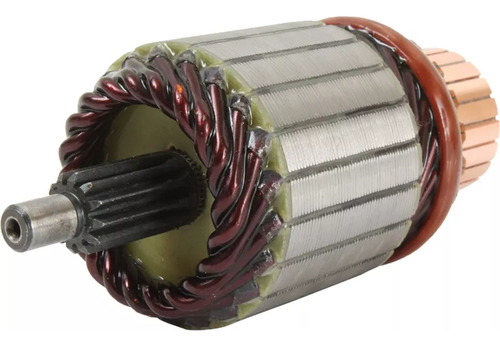

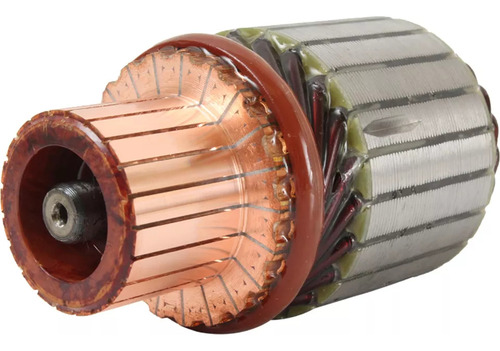

Inducido Arranque Blazer Tipo Delco Remy Pg260
ARMATURE 12V 12SPL 1.8KW GM BLAZ SILVERAD 4.3-5.7 PG260M SER

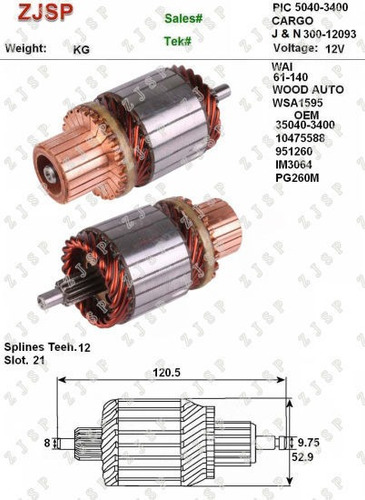

PG260 Armature WAI:61-140 OEM:10475588 12V,121mm OAL,12-Splines 7.97mm Shaft OD,9.75mm Shaft OD FOR:Delco PG260M Starter OUR NO.:ARM11-013
Our Part Number: SDR3002

New Armature for Starter, 12 Volt, CW, Delco 300-12093, 3400, 61-140 10475588
100 Brand NEW Aftermarket Part From DB Electrical

Applications:
Armature Starter, Voltage 12, Rotation CW, Delco PG260M
MAKE TYPE MODEL YEAR ENGINE
Specifications:
Part Type ARMATURE - STARTER
Voltage 12
Rotation CW

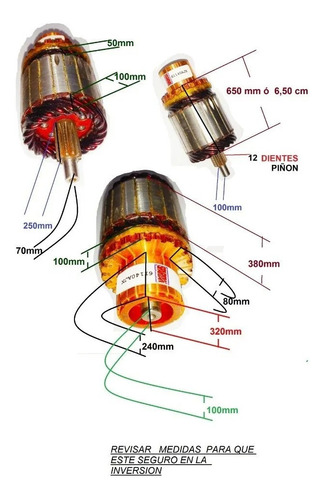

Dimension Volt 12; CE Length 12.4mm; CE Shaft Diam 9.7mm; Comm Diam 33mm; Core Diam 53mm; Core Length 38.5mm; DE Shaft Length 37.7mm; DE Shaft Diam 7.97mm; Pilot Length 12mm; # Comm Bars 21; OAL Arm 120.6mm; Spline Type Straight; # Splines 12;
Brief Delco PG260M Series Starters


ARROWHEAD SDR3002
DELCO 10475588
J & N 300-12093
LESTER (OLD) 3400
WAI 61-140

replacing: 10475588 servicing: pg260 m 8000321 9000786 9000798 9000804 9000805 9000806 9000812 9000819 9000820 9000821 9000822 9000834

Armature
Replace OEM(s): Delco
For: Delco PG260M Series PMGR Starters
Used On: Delco PG260 Starters
Body OD: 2.087in / 53mm
CE Length: 12.4mm
CE Shaft OD: 0.382in / 9.7mm
CE To Bearing/Bushing Stop: 0.398in / 10.1mm
Comm Bars Count: 21 Bars
Comm Dia: 33mm

Condition: New
DE Length: 37.7mm
DE Shaft OD: 0.319in / 8.1mm
DE To Bearing/Bushing Stop: 0.488in / 12.4mm
Gear OD: 14.5mm
Lam Stack Length: 38.5mm
Lam Stack OD: 53mm
Lam Stack Thickness: 1.465in / 37.2mm
Length: 4.752in / 120.7mm
Pilot Length: 12mm
Rotation: CW
Specification: 121mm OAL 12-Splines 7.97mm Shaft OD, Front Bushing 9.75mm Shaft OD, Rear Bushing
Splines Count: 12 Splines
Splines Type: Straight
Voltage: 12 Volt
Weight: 1.92 lbs / 0.87 kg

1994 1996 1997 1998 CHEVROLET BLAZER ENGINE STARTER MOTOR 10465167 OEM

GOOD CONDITION.

COMPATIBLE WITH THE FOLLOWING:

ASTRO 97-98
BLAZER S10/JIMMY S15 96-98
BLAZER/JIMMY (full size) 94 8-350 (5.7L), ID 10465167
BLAZER/JIMMY (full size) 94 8-350 (5.7L), ID 9000786
BRAVADA 96-98
CHEVROLET 10 VAN 94 8-350 (5.7L), ID 9000786
CHEVROLET 10 VAN 95 8-305 (5.0L)
CHEVROLET 10 VAN 95 8-350 (5.7L)
CHEVROLET 1500 PICKUP 94 8-350 (5.7L), ID 10465167
CHEVROLET 1500 PICKUP 94 8-350 (5.7L), ID 9000786
CHEVROLET 1500 PICKUP 95 8-350 (5.7L)
CHEVROLET 1500 PICKUP 98 8-350 (5.7L), Extended Cab, 141.5" WB
CHEVROLET 1500 PICKUP 99 5.0L
CHEVROLET 1500 PICKUP 99 5.7L
CHEVROLET 20 VAN 94 8-350 (5.7L), ID 9000786
CHEVROLET 20 VAN 95 8-305 (5.0L)
CHEVROLET 20 VAN 95 8-350 (5.7L)
CHEVROLET 2500 PICKUP 94 8-350 (5.7L), ID 10465167
CHEVROLET 2500 PICKUP 94 8-350 (5.7L), ID 9000786
CHEVROLET 2500 PICKUP 94 8-454 (7.4L), ID 9000786
CHEVROLET 2500 PICKUP 95 8-350 (5.7L)
CHEVROLET 2500 PICKUP 95-00 8-454 (7.4L)
CHEVROLET 2500 PICKUP 99-00 8-350 (5.7L)
CHEVROLET 30 VAN 94 8-350 (5.7L), ID 9000786
CHEVROLET 30 VAN 94 8-454 (7.4L), ID 9000786
CHEVROLET 30 VAN 95-96 8-305 (5.0L)
CHEVROLET 30 VAN 95-96 8-350 (5.7L)
CHEVROLET 30 VAN 95-96 8-454 (7.4L)
CHEVROLET 3500 PICKUP 94 8-350 (5.7L), ID 10465167
CHEVROLET 3500 PICKUP 94 8-350 (5.7L), ID 9000786
CHEVROLET 3500 PICKUP 94 8-454 (7.4L), ID 9000786
CHEVROLET 3500 PICKUP 95 8-350 (5.7L)
CHEVROLET 3500 PICKUP 95-98 8-454 (7.4L)
CHEVROLET 3500 PICKUP 96-98 8-350 (5.7L), w/Crew Cab
CHEVROLET 3500 PICKUP 99-00 gasoline
ENVOY 98
ESCALADE 99-00
EXPRESS 1500 VAN 00 5.0L
EXPRESS 1500 VAN 00 5.7L
EXPRESS 1500 VAN 96-99 8-305 (5.0L)
EXPRESS 1500 VAN 96-99 8-350 (5.7L)
EXPRESS 2500 VAN 00 5.0L
EXPRESS 2500 VAN 00 5.7L
EXPRESS 2500 VAN 96-99 8-305 (5.0L)
EXPRESS 2500 VAN 96-99 8-350 (5.7L)
EXPRESS 3500 VAN 00 5.7L
EXPRESS 3500 VAN 00 7.4L
EXPRESS 3500 VAN 96-99 8-350 (5.7L)
EXPRESS 3500 VAN 96-99 8-454 (7.4L)
GMC 1500 PICKUP 94 8-350 (5.7L), ID 10465167
GMC 1500 PICKUP 94 8-350 (5.7L), ID 9000786
GMC 1500 PICKUP 95 8-350 (5.7L)
GMC 1500 PICKUP 98 8-350 (5.7L), Extended Cab, 141.5" WB
GMC 1500 PICKUP 99 5.0L
GMC 1500 PICKUP 99 5.7L
GMC 1500 VAN 94 8-350 (5.7L), ID 9000786
GMC 1500 VAN 95 8-305 (5.0L)
GMC 1500 VAN 95 8-350 (5.7L)
GMC 2500 PICKUP 94 8-350 (5.7L), ID 10465167
GMC 2500 PICKUP 94 8-350 (5.7L), ID 9000786
GMC 2500 PICKUP 94 8-454 (7.4L), ID 9000786
GMC 2500 PICKUP 95 8-350 (5.7L)
GMC 2500 PICKUP 95-00 8-454 (7.4L)
GMC 2500 PICKUP 96-97 8-350 (5.7L), Crew Cab
GMC 2500 PICKUP 99-00 8-350 (5.7L)
GMC 2500 VAN 94 8-350 (5.7L), ID 9000786
GMC 2500 VAN 95 8-305 (5.0L)
GMC 2500 VAN 95 8-350 (5.7L)
GMC 3500 PICKUP 94 8-350 (5.7L), ID 10465167
GMC 3500 PICKUP 94 8-350 (5.7L), ID 9000786
GMC 3500 PICKUP 94 8-454 (7.4L), ID 9000786
GMC 3500 PICKUP 95 8-350 (5.7L)
GMC 3500 PICKUP 95-98 8-454 (7.4L)
GMC 3500 PICKUP 96-98 8-350 (5.7L), Crew Cab
GMC 3500 PICKUP 99-00 gasoline
GMC 3500 VAN 94 8-350 (5.7L), ID 9000786
GMC 3500 VAN 94 8-454 (7.4L), ID 9000786
GMC 3500 VAN 95-96 8-305 (5.0L)
GMC 3500 VAN 95-96 8-350 (5.7L)
GMC 3500 VAN 95-96 8-454 (7.4L)
ISUZU HOMBRE 97-98 6-262 (4.3L)
S10/S15/SONOMA 96-97 6-262 (4.3L)
S10/S15/SONOMA 98 6-262 (4.3L), w/o opt ZN4
SAFARI (GMC) 97-98
SAVANA 1500 VAN 00 5.0L
SAVANA 1500 VAN 00 5.7L
SAVANA 1500 VAN 96-99 8-305 (5.0L)
SAVANA 1500 VAN 96-99 8-350 (5.7L)
SAVANA 2500 VAN 00 5.0L
SAVANA 2500 VAN 00 5.7L
SAVANA 2500 VAN 96-99 8-305 (5.0L)
SAVANA 2500 VAN 96-99 8-350 (5.7L)
SAVANA 3500 VAN 00 5.7L
SAVANA 3500 VAN 00 7.4L
SAVANA 3500 VAN 96-99 8-350 (5.7L)
SAVANA 3500 VAN 96-99 8-454 (7.4L)
SUBURBAN 1500 94 (8-350, 5.7L), ID 9000786
SUBURBAN 1500 95-96 8-350 (5.7L)
SUBURBAN 1500 99 8-350 (5.7L), gear reduction starter (small frame)
SUBURBAN 2500 94 8-350 (5.7L), ID 9000786
SUBURBAN 2500 94 8-454 (7.4L), ID 9000786
SUBURBAN 2500 95-96 8-350 (5.7L)
SUBURBAN 2500 95-99 8-454 (7.4L)
SUBURBAN 2500 99 8-350 (5.7L), gear reduction starter (small frame)
TAHOE 00 5.7L
TAHOE 95-96 8-350 (5.7L)
TAHOE 98 8-350 (5.7L), 4 Dr, 4x4
TAHOE 99 8-350 (5.7L)
YUKON 00 5.7L
YUKON 94 8-350 (5.7L), ID 9000786
YUKON 95-96 8-350 (5.7L)
YUKON 98 4x4
YUKON 99
GM 10465167
DL 323485
Ident: 10465167
Ident: 12563829
Ident: 9000786
Gear reduction starter (smaller size).
