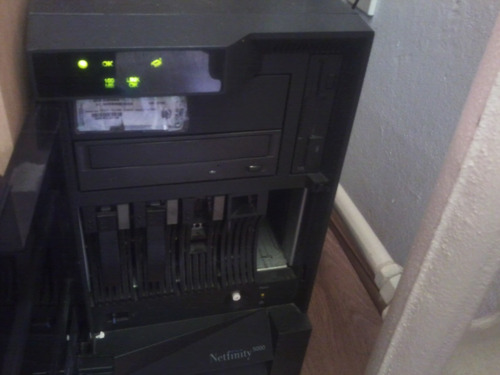

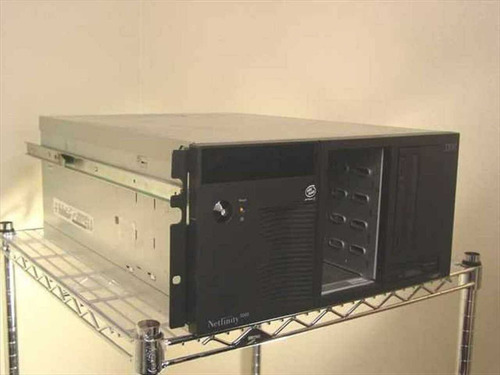

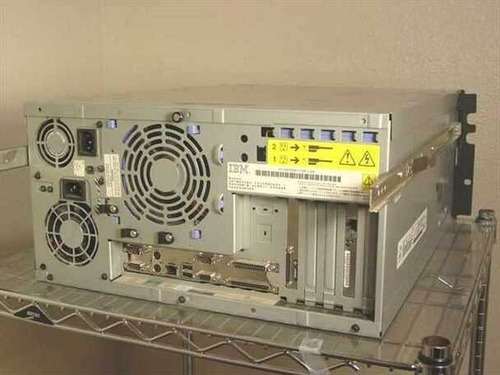

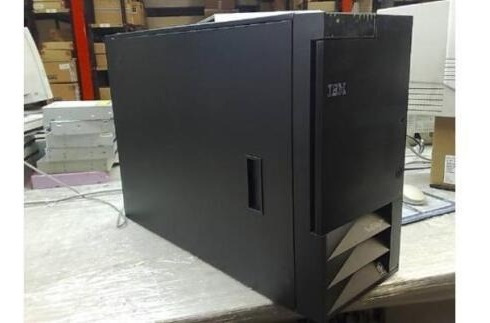

Servidor Ibm (Usado)

Descripción

Processor type Pentium II 450MHz
Number of processors standard / maximum 1/2
Level 2 cache 512KB
Memory standard / maximum 64MB / 2048MB
Disk Subsystem Dual Channel Wide Ultra SCSI (SCSI-3 on planar), 0MB installed
Hard disk type Open bay
Maximum storage capacity 91GB
Slots and bays total / (available) PCI/ISA 5(5) x 8(6)
CD-ROM 32Xmax-14Xmin
Network interface Ethernet-Integrated

Architecture
Form factor Rack
Orientations allowed Horizontal
Bus type/architecture PCI/ISA
Slots x bays total (free) 5(5) x 8(6)
Expansion bus type PCI/ISA


Processor
Processor type Pentium II
Processor internal clock speed 450MHz
Front side bus 100MHz
Number of processors standard/maximum 1/2
Processor manufacturer Intel
SMP capable Yes
Math co-processor Built-in
L1 internal CPU cache 32KB
L2 external CPU cache standard/maximum 512KB
L2 external CPU cache type ECC
L3 cache .
Upgradable processor Yes
Processor upgrade options Faster Pentium II processors (if available from Intel)
Processor upgrade method Add/Replace processor cartridge in Intel Slot1 connector
BIOS type Flash


Memory
Memory (RAM) standard/maximum 64MB / 2048MB
RAM speed 100MHz
Optional RAM speed 168-pin DIMMs
RAM type SDRAM ECC
RAM slots total (available) 4 DIMM (3 DIMM)


Hard disk
Number of installed hard disks 0
Hard disk size Open bay
Hard disk controller Dual Channel Wide Ultra SCSI (SCSI-3 on planar)
Hard disk type Open bay
Maximum internal hard disk capacity 91GB
Hard disk average seek time .
Average latency .
Hot swappable drive bays 5/5
RAID levels supported Optional


CD-ROM
CD-ROM speed 32X max / 14X min
CD-ROM interface type IDE
CD-ROM data transfer rate 2100KBps, 4800KBps
CD-ROM average access time 95 ms


Graphics subsystem
Graphics chipset S3 Trio64V2/GX
Graphics type SVGA
Graphics data width 16-bit
Video RAM standard/maximum 1MB / 1MB
Video RAM type SGRAM
Maximum resolution (with standard video RAM) 1024x768 256 colors
Maximum resolution (with maximum video RAM) 1024x768 256 colors
Maximum colors (with standard video RAM) 16777216
Maximum colors (with maximum video RAM) 16777216
Graphics bus interface PCI


Networking
Networking interface Ethernet-Integrated
Network speed 10Mbps, 100Mbps
Network features 10Base-T/100Base-TX port, RJ-45 connector


Standard features
Pointing device type .
Standard diskette size 3.5" 1.44MB
Keyboard type .
I20 Compliant Yes
Product approvals / certifications BCIQ CNS13438 Class A (Taiwan); C-Tick Mark (AS/NZS 3548 Class A); CB Certificate/Report; CISPR-22 Class A; CSA C22.2 No. 950; FCC Class A - Part 15; ICES-003 Class A; IEC-950; ISO 9241-3; MPS 1.4; TUV-GS - ZH/618; TUV-GS (EN 60950/IEC-950); UL-1950; VCCI Class A; CE MARK (EN 55022 Class A; EN60950; and EN50082-1); NOM 018


Power management
Power supply 350(2x175) Watts
Power supply type 110 or 220 volt universal auto sensing
Power supply additional 175 watt (redundant power supply)
Heat emissions 75Watts
Sound emissions 63dB
Cooling system 3 fans
UPS Optional
Power management features Auto restart


System management
Adapter Advanced System Management Processor
Software Netfinity Manager
Capacity Manager
Cluster Manager
RAID Manager
Update Connector


Expansion options
Slots total (free) and type 2(2) PCI/ISA shared fullsize, 3(3) PCI fullsize
3.5" bays .
- accessible (free) and height 6(5) SL
- not accessible (free) and height 0(0)
5.25" bays .
- accessible (free) and height 2(1) HH
- not accessible (free) and height 0(0)
Plug and play support Yes
Parallel ports (type) 1 (SPP/ECP/EPP/IEEE 1284)
Serial ports (type) 2 (9-pin 16550A), 2 (USB)
Expansion ports Display, Ethernet, Keyboard, Mouse, SCSI


Weight and dimensions
Weight 29Kg
Height 217mm
Width 439mm
Depth 576mm
Operating Temperature (C) (low; high) 10; 32
Relative humidity (%) (low; high) 8; 80


Software
Tested operating systems IBM OS/2 Warp Server Advanced V4 with SMP Feature, IBM OS/2 Warp Server Advanced V4.0J with SMP Feature, Microsoft Windows NT 4.0 Server, Novell IntranetWare V1.0 (including Netware 4.11 SMP and SFT-III)
Operating system provided Optional
Communication/networking applications MoST Connect; Remote Connect
Device drivers/utilities ServerGuide (Netfinity Manager); Update Connector
Productivity applications Choice of Lotus Domino or Domino Intranet Starter Pack


Security
Security features Boot sequence control
Power on password
Privileged access password
Unattended startup
VPD support .
