Características del producto
Características principales
Marca | Intel |
|---|---|
Línea | X58 |
Modelo | DIntel DX58SO Extreme Series |
Versión | Extreme Series |
Otros
Plataforma | Intel |
|---|---|
Chipsets | X58 |
Socket | Socket 1366 |
Factor de forma | ATX |
Ranuras de expansión | 2 x PCI Express x4 |
Aplicaciones | PC |
Con procesador | No |
Tipo de memoria RAM | DDR3 |
Capacidad máxima soportada de la memoria RAM | 16 GB |
Descripción

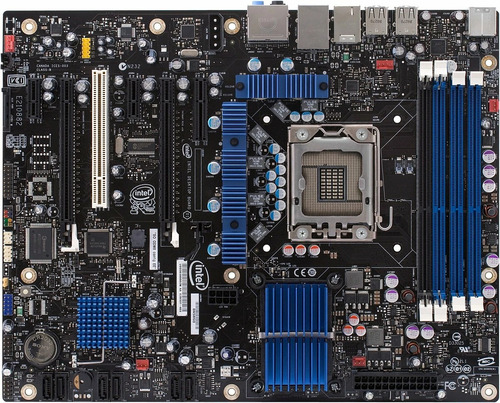

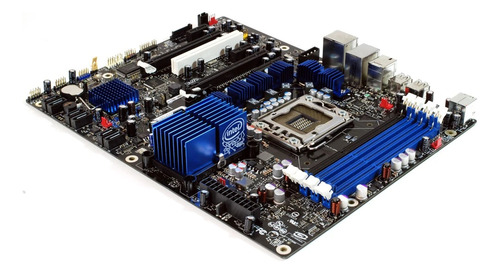

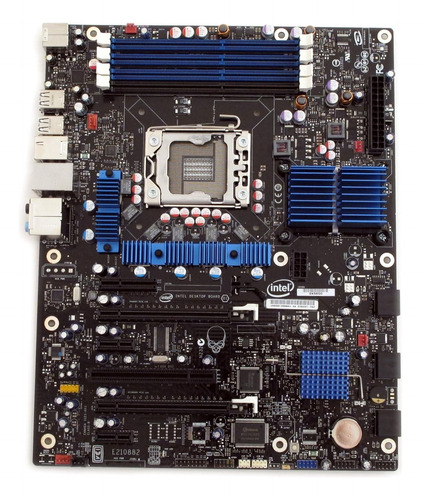

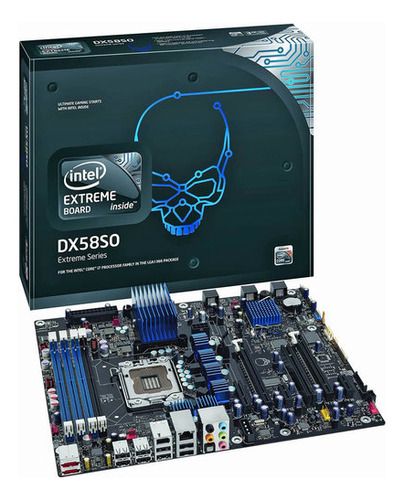

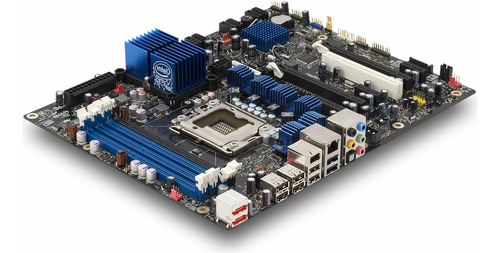

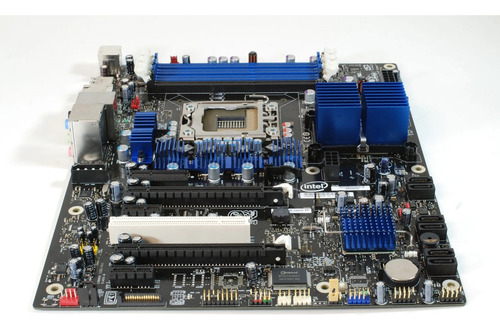

TARJETA MADRE INTEL DX58SO EXTREME SERIES (NUEVA)
SELLADA EN SU CAJA
SOCKET 1366
ENTREGA EN LUGAR ACCESIBLE DE MUTUO ACUERDO O SE ENVIA
Intel DX58SO LGA1366 Motherboard
Brand: Intel
Model: DS58SO
Socket: LGA1366
Chipset: Intel X58
Memory: 4x DDR3 (16GB Max)
Form-Factor: Micro-ATX
EAN: 0735858203036, 6759009715920
SKU: BLKDX58SO, BOXDX58SO
Description
The Intel DX50so Socket 1366 motherboard is an ATX motherboard which is equipped with 4 DDR3 memory slots. The Intel DX58so motherboard motherboard is an LGA1366 motherboard which is equipped with a network (RJ-45) connection, IEEE1394, eSATA and no less than 4 DDR3 memory slots
Brief Specifications:
Motherboard – Socket LGA1366 | ATX | Intel X58 Chipset | 4 x DDR3 up to 16GB | 1x Gigabit Ethernet | PCI | 1x PCI-e 2.0 x1 | 2x PCI-e 2.0 x16 | PCI-e x4 | 2x eSATA | 12x USB 2.0 | 6x SATA-300 | 2x SATA-600
Processors supported by the Intel DX58so
Drivers for the Intel DX58so
Product: Intel DX58so LGA1366;
Category: Intel LGA1366 Motherboards;
Brand: Intel
EAN: 0735858203036, 6759009715920
SKU: BLKDX58SO, BOXDX58SO
Condition: NEW
Warranty: NO
CPU
– Intel® Socket 1366 Core ™ i7 Extreme Edition / Core ™ i7 Processors
– Supports Intel® Turbo Boost Technology
Chipset
– Intel® X58
Memory
– 4 x DIMM, Max. 16GB, DDR3 1600/1333/1066/800 Hz Non-ECC, Un-buffered Memory
– Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Supports ECC Memory
Audio
Realtek ALC889 High Definition Audio CODEC
LAN
Intel 82567LF, 1 x Gigabit LAN Controller
IEEE 1394
1 x IEEE 1394a port (s)
Slots
– 2 x PCIe 2.0 x16 (dual x16)
– 1 x PCIe x16 (x4 mode)
– 1 x PCIe x1
– 1 x PCI
Storage
Intel® ICH10R controller:
– 6 x SATA 3Gb / s port (s)
– 2 x eSATA 3Gb / s port (s)
USB
USB 2.0 Configuration (External + Internal) 8 + 4
Connector
– 8 x USB 2.0 connector (s) support (s) additional 4 USB 2.0 port (s)
– 6 x SATA 6Gb / s connector (s)
– 1 x CPU Fan connector (s)
– 2 x Chassis Fan connector (s) (1 x 4-pin, 1 x 3-pin)
– 1 x Power Fan connector (s)
– 1 x S / PDIF out header (s)
– 1 x 24-pin EATX Power connector (s)
– 1 x 8-pin ATX 12V Power connector (s)
– 1 x Front panel audio connector (s) (AAFP)
Rear Panel I / O
I / O Panel
– 2 x eSATA 3Gb / s
– 1 x IEEE 1394a
– 1 x LAN (RJ45) port (s)
– 8 x USB 2.0
– 1 x Optical S / PDIF out
– 6 x Audio jack (s)
Accessories
– I / O Shield
Form Factor
– ATX Form Factor
– 12 inch x 9.6 inch (30.5 cm x 24.4 cm)
