Sensor Inductivo Alta Temperatura Hasta 204°c

Descripción

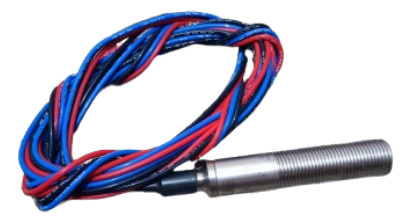

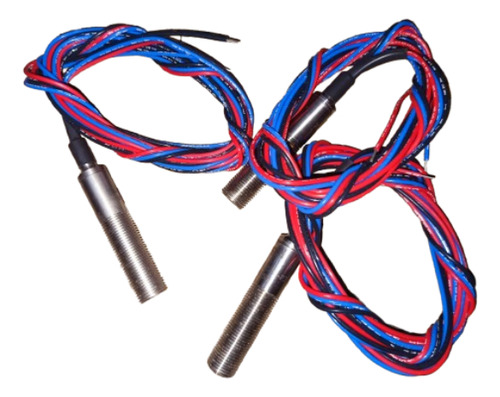

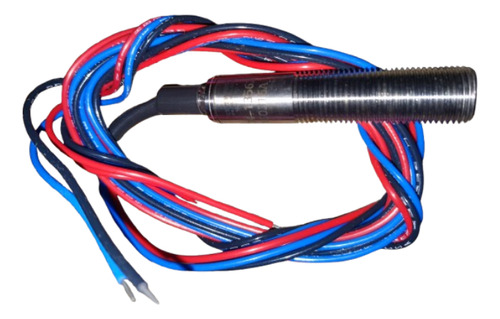

Sensor inductivo alta temperatura hasta 204°C TOPWORX 74-13522-F3 24VDC

****************************************************
CARACTERÍSTICAS
****************************************************

Body Shape Cylindrical
Body Material 316L Stainless Steel
Contact Arrangement SPCO / SPDT (Form C)
Contact Material Palladium-Silver
Mounting Thread 5/8"-18 UNF (47.60mm / 1.87" long) c/w 2 x locknuts
Max Current 4A
Connection Individual Teflon Leads
Conduit Entry No Conduit Entry
Termination Lead wires
Operating Temperature -40°C to +204°C / -40°F to +400°F
Sensing Range with Magnet <12mm (0.47")
Sensing Face Pressure Rating 2000psi / 138 bar
Environmental Protection IP 66, 67 & 68 (24hrs at 30m)/ NEMA 4X & P
Safety Rating SIL 2 / SC3
Range (ferrous target) 2.5mm|0.10"
Repeatability Approx. 0.05mm (0.002")
Response Time 8 ms
Differential / Hysteresis < 0.51mm (0.020")


Ref 150


****************************************************
