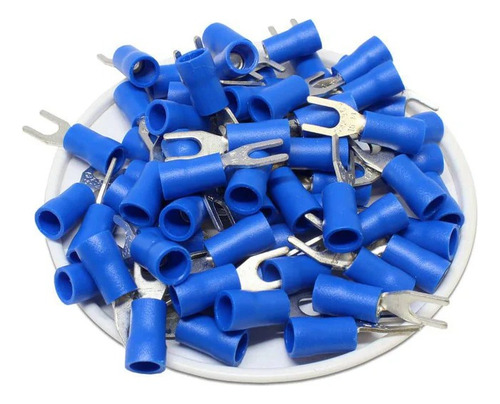

Terminal Eléctrico Horqueta #6 Cable 14-16 Azul 6mm Pack-10

Descripción

Dorman 85426 - 16-14 Gauge Spade Terminal, No. 6, Blue

IDEAL Electrical 83-7171
IDEAL Electrical
#16-14 AWG/10 in. Vinyl Insulated Spade Terminals

16 to 14 AWG Vinyl PVC Insulated Spade Terminals, #6 Stud, Butted Seam, Blue, 10 Pieces - SVL2-37

Dimensions & Features:
Wire Size: 16-14 AWG
Stud Size: #6 Stud
Seam: Butted
Temperature Rating: 105oC
Voltage Rating: 600 Volts
Max Eletrical Current: 18AMP
Terminal Insulation: Vinyl
Terminal Material: Tin-Plated Copper
T: 0.8mm (0.03")
L: 21.0mm (0.83)
F: 6.5mm (0.26")
E: 10.0mm (0.39")
W: 6.0mm (0.24")
D: 4.5mm (0.18")
D1: 2.3mm (0.09")
D2: 3.7mm (0.15")
UL Recognized: Yes
CE Certified: Yes
RoHS Compliant: Yes

Product Drawing:
Cross References
Cross Reference Parts:
Carid JT&H: 2053H

Part Interchanges
Pico 1823
Pico 1823D
Pico 1823KT
JT&T 2053H
Noble 321D
Calterm 61141
Grote 784369
Grote 84-2332
Standard Motor Products ET133
Calterm 69141
Grote 722105
Grote 83-2332
Grote 88-2332
JT&T 2053B
JT&T 2053C
Kem 59-203
Kem 59-203A
Pico 1823A
Pico 1823C
Pico 1823M
Pico 1823PT
Pico 1823QT
Perfect Circle 80153
Standard Motor Products STP133
Noble 321
Noble 321B
Noble 321H
Noble 321M
Bowman 23837
